Commercial Gas, CO & Smoke Detectors

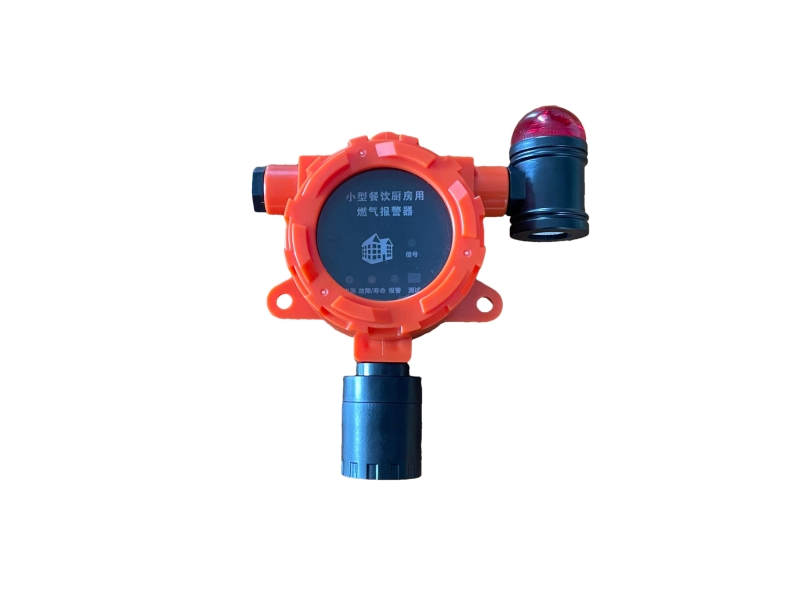

Combustible Gas Alarm for Small Catering Kitchen Model:BYTRXFK-LB601
The gas alarm for small catering kitchens is a combustible gas safety detection and early warning device specially designed for commercial kitchens such as restaurants, snack bars, fast food restaurants and noodle shops. It mainly monitors the leakage concentration of natural gas and liquefied petroleum gas in real time. Once excessive gas concentration is detected, it will trigger an immediate sound and light alarm. It can also link with the emergency gas cut-off valve to automatically shut off the gas supply and connect with exhaust fans for automatic ventilation. It effectively prevents gas explosion, fire and personnel poisoning accidents, and protects personal safety and property safety in the kitchen.
Detail
Specifications
| Parameter Item | Specification |
|---|---|
| Product Model | BYTRXFK-LB601 |
| Suitable Gas | Propane |
| Alarm Point | 10%LEL |
| Implementation Standard | GB/T34004-2017 |
| Operating Temperature | 0-60℃ |
| Operating Humidity | ≤95%RH |
| Input Power | AC220V 50Hz |
| Sensor Voltage | DC 5V |
| Static Power Consumption | ≤1.2W |
| Alarm Power Consumption | ≤3W |
| Response Time | <30s |
| Alarm Volume | >80dB (1m distance) |
| Service Life | 3 years |
| Optional Function | 4G remote management platform, wired or 433 wireless valve control |
